CP 6000CS
Automatic Side Sealer
Shrink Wrappers : Automatic Machines : Automatic Side Sealer : CP 6000CS

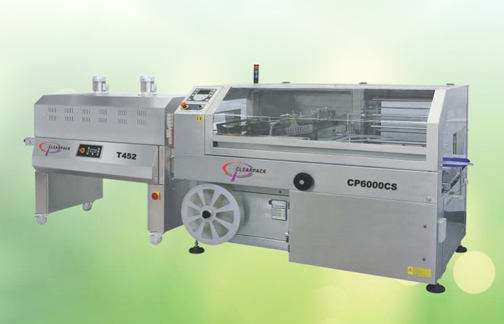

CP 6000CS
- Modularity and excellent price/quality ratios are the main features characterizing the automatic side sealers of the CP series.
- All the models of this range can be supplied with or without shrink tunnel.
- Compared to the traditional L-sealing hood packers, the CP series provides higher outputs as well as the possibility of using Polyethylene film, besides the traditional shrink films.
- The CP series of modular sealers with shrink tunnel includes different models for various ranges of output depending upon product dimensions.
Brochure
Video
Features
- Automatic l-sealer with shrink tunnel
- Conveyor closing system included
- Motorized center seal system
- 4,3" graphic lcd control panel with 32-bit microprocessor
- Automatic control of the sealing bar height
- Possibility of packing single packs or multipacks
- Speed of conveyors electronically adjustable
- Process statistics
- Reduced power consumption
Technical Details
| Power Supply | 380-415 3PH-N-PE 220-240 3PH-PE 50/60 |
| Compressed air pressure | 6 bar |
| Sealing bar | 640 x 510 mm |
| Installed Power | 3100 W |
| Maximum pack height | 200 |
| Speed of Conveyors | 10-30 |
| Machine Size | 2180 × 1545 h 1525 - 1655 |
| Machine net weight | 660 kg |
